This project is about converting a given Directed Acyclic Graph (DAG) to an optimal Logical Execution Time (LET) design. We can think of LET design as a schedule table with logical deadlines for each task, rather than the actual physical deadline. The optimality aspect ensured that vertical core parallelisms is maximized, and horizontal length is minimzed, given a timing and core constraints. Everything was implemented through the help of Constraint Programming using Z3 in Python. Below are three illustrative charts:

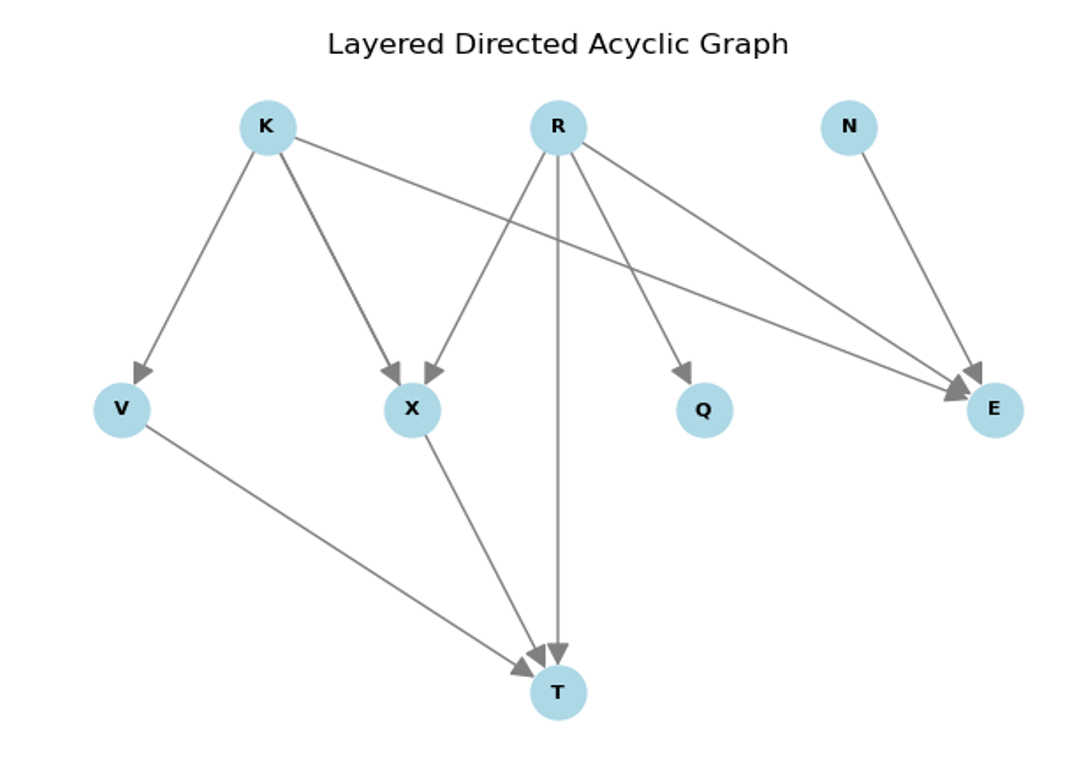

We take this DAG as input, and two constraints: number of cores k, and timing constraint t_const. Let’s assume for our application min_cores = 2.

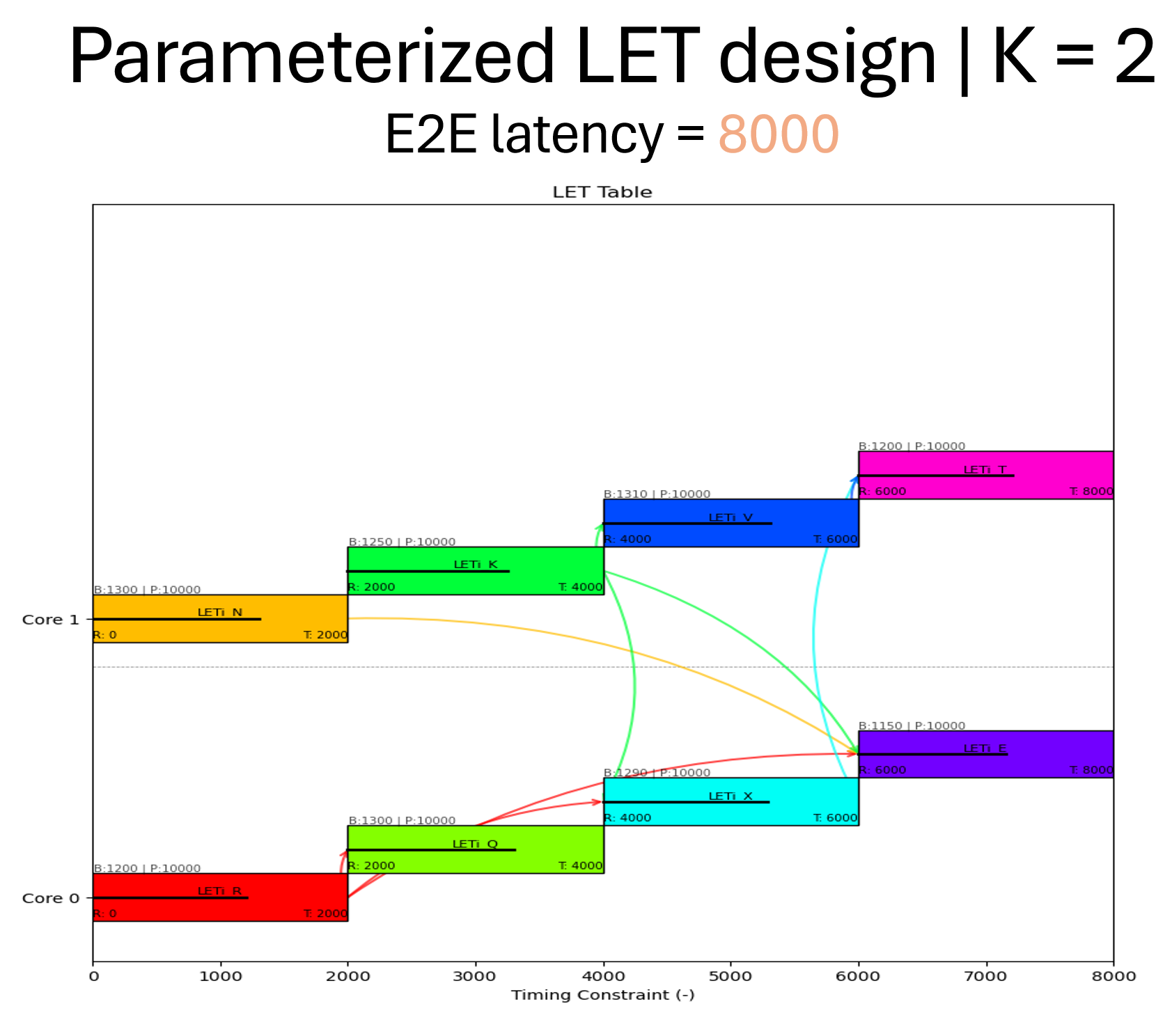

Example 1: We specify that we have k = 2 cores available on our multicore platform and t_const = 8000ms. We get this corresponding Optimal LET schedule table:

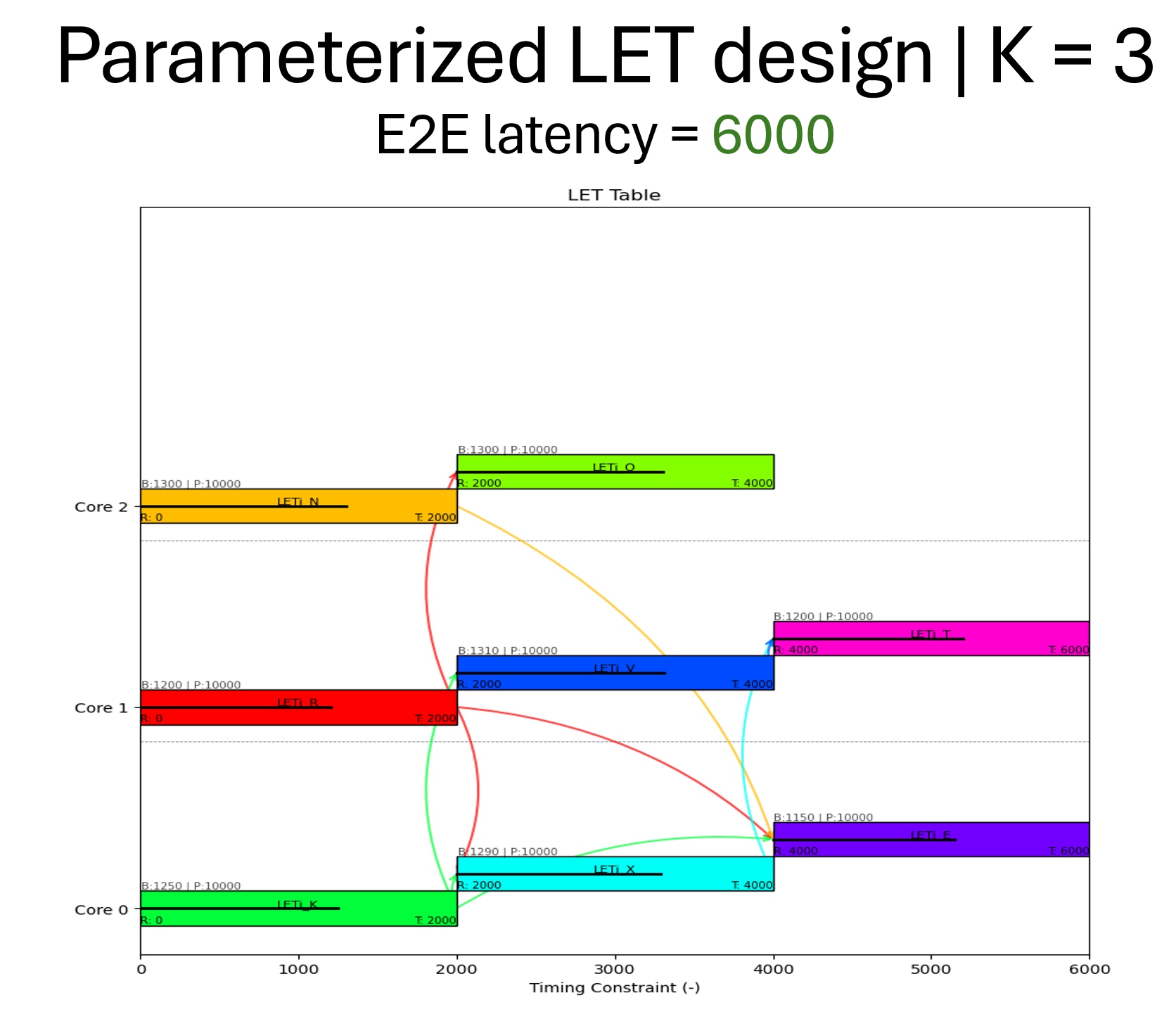

Example 2: We specify that we have k = 3 cores available on our multicore platform and t_const = 8000ms. We get this corresponding Optimal LET schedule table (It only took 6000ms, since we have more resources!):

For any \(n\) nodes DAG, and any \(k\) cores, the presented solution is generalizable for any \(n, k \in \mathbb{N}\)
